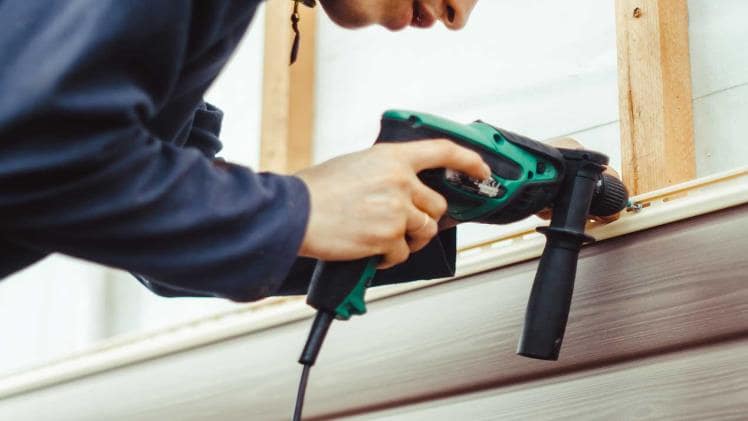

Drill, screwdriver, a trustworthy device in a home builder company by a drill with a screwdriver to adjust the depth of the screw head for professional screw shooting, lightweight, does not let the screw head go through, can be used with a screwdriver bit PH2 – 25 mm. Price is about 3,900-4,500 baht.
Available for purchase at online material stores.
SCREW DRIVER
Measuring, writing, marking, dust prevention, fiber cement board and wood
- angle measurement
- Dust mask.
- Tape measure
- Artist’s pencil
- Beetroot with noodles
7.3 Fixing screws, fiber cement boards and timber
Winged drill screws
will have the following size
7x18 mm. for drilling fiber cement board, thickness 3.5/4 mm.
7x25 mm. Fiber cement board thickness 6/8/10 mm. Cement board thickness 8/10 mm. Plank thickness 8 mm., lath thickness 8 mm.
7x28 mm. Fiber cement board, thickness 12 mm. Cement board, thickness 12 mm. Wood fence, blinds, thickness 12 mm.
7x32 mm. Eaves wood, multipurpose wood, thickness 16 mm. Wood fence, thickness 16 mm., wood veneer, thickness 8 mm. Fiber cement board, thickness 4 mm., fiber cement board, thickness 15/16/18/20 mm., cement board, thickness 16/20 mm., cornice, thickness 8 mm., fired over 8 mm. fiber cement board or gypsum wall Board 12 mm. Cement board, thickness 24 mm. Fiber cement floor, thickness 25 mm.
Note: Drilling for fixing in a party-shaped steel frame, thickness not more than 3.2 mm. without lead drilling.
Caution! When choosing a winged drill bit
screws are of poor quality Can’t hold the lath Shoot and then loose and fall out.
Recommendation: You should buy a small bag to test and fix it first to see if it works well or not, because the winged drill screws in the market It’s not as good as every brand. Poor quality screw problems occur frequently. In the case of buying a brand that has never been used before
Fixing screws for fiber cement board/wood
Drill-tipped screw (wafer head) for Not used in home builders. But brought to shoot the board /Fiber cement wood, showing screw heads or fixing work firmly to support the weight of air conditioner hanging panels Hook for hanging curtain rods, steel panels, TV hangings, and structural steel frames, thickness not exceeding 3.2 mm. without drilling holes.
Fixing screws for gypsum board
Drill-tipped screw 7x25 mm. for fixing gypsum board wall thickness 12 mm. to structural steel frame, thickness not exceeding 3.2 mm. without drilling.
Pointed screw 6 x 3/4 inch for fixing the gypsum board wall, thickness 9 mm.
Pointed screw 6x1 inch for fixing gypsum board wall thickness 12 mm. to galvanized wall frame.
Fixing screws, galvanized purlin
Drill-end screw, purlin fixing, for attaching galvanized purlins to steel structures with a thickness of not more than 3.2 mm. without pilot drilling.
Screws for fixing double corrugated roof
Screw at the end of the drill 100 mm. for fixing the roof of a pair of corrugated tiles to a profile steel frame, thickness not more than 3.2 mm. without pilot drilling by using block head No. 8
interior wall layout For fiber cement board, cement board thickness 8 -12 mm.
- smart frame C74 and U75 SCG Fiber cement board wall frame system made of high quality steel JIS G3302 TIS. 50-2538, full thickness 0.55 mm. according to the TIS 863-2532 standard.
- Internal wall frame for gypsum board 12-15 mm.
Pro-Wall ProWall SCG Gypsum board truss system Made from rust-proof galvanized steel, JIS G3302, TIS. 50-2538, full thickness, size 0.52 mm., TIS 863-2532 standard.
Smooth plaster ceiling structure For gypsum ceiling 9 mm.
Gypsum board ceiling truss system Made from rust-proof galvanized steel JIS G3302 TIS. 50-2538, full thickness, size 0.52 mm. according to the TIS 863-2532 standard.
Metal frame system, smooth plaster ceiling, Pro-Line, Elephant SCG
Butterfly cleats, fixing devices, gypsum board and Fiber cement board wall for hanging heavy items by using wall panels direct weight
